K4 - Kolonel Klink's Kern Kraft

(meaningless arbitrary name change - sorry!)

Solar power is nuclear fusion power. If you can set up a reasonably priced system to collect this free energy, then every kilowatt-hour of energy collected saves you real money, and is a modest, but legal form of TAX DODGE, because you are avoiding GST by saving significantly on your gas and/or electricity bills.

Innovative Concept

This is a new design concept for the Cinderella of the energy industry: the unglamorous, unsung heroine of energy supply: the Solar Water Heater. The only really novel feature is the use of a very small photovoltaic panel to directly drive an efficient DC water pump, with the components carefully matched for power ratings to ensure the pump only moves water when there is sufficient solar radiation to provide some water heating.

Scientifically speaking, a solar water heater can be accurately described as a Nuclear Fusion Primary Heat Exchanger. It collects radiant energy from that huge nuclear reactor in the sky (the Sun!) and traps it in a flat sheet of metal. Water tubes then transfer the heat away for storage and later use. This is directly analogous to heat exchangers inside an Earth-based nuclear power plant, where in fact much of the electricity generated really is squandered on low-grade heating applications, such as domestic hot water.

Ten Per Cent TAX-FREE Return on Investment (typical for retrofit)

K4 can be installed as a retrofit to an existing 300 to 400 litre ground-level mains pressure storage hot water tank for under $2000 with half a day's DIY labour, though strictly speaking a plumber should make the final connection. It should provide a tax-free ten per cent return* on that investment for around 20 years, (*maybe much more depending on the cost of gas and electricity after 1st Jan 2001).

Free Plans Online Here

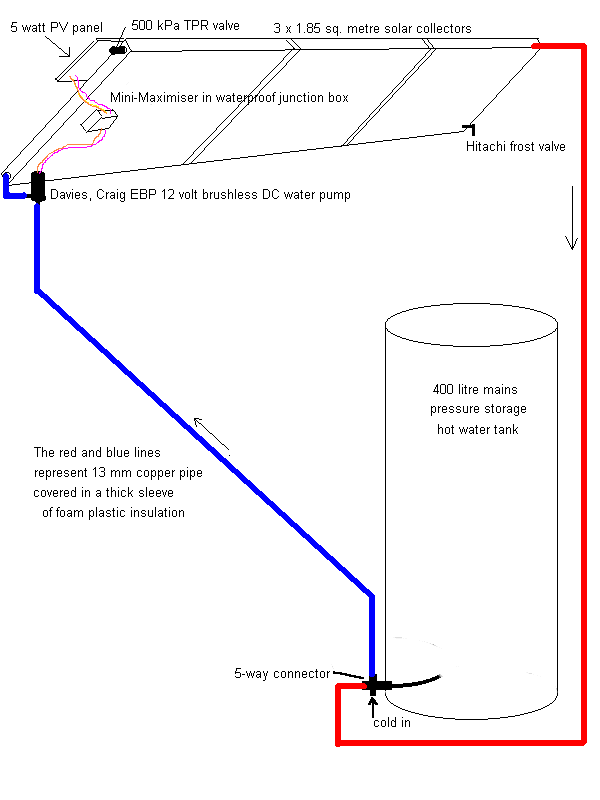

Here is a diagram of the major components

layout of main components

.....and this table lists the components with indicative retail costs (October 2000)

K4 - affordable DIY solar hot water system
Quantity Description Indicative Price, AUD
3 1.9 m2 solar collectors @ $450ea. (any Aussie-made brand will do - mine were "Sunbather" from Albury Consolidated Industries) $1,350.00
10 metres 13mm copper pipe $75.00
5 2m lengths black foam thermal insulation ID 16mm $50.00
1 Davies,Craig1 EBP 12 volt water pump short version 9002 $201.45
1 5-way adapter fitting $50.00
1 5- or 10-watt photovoltaic panel $135.00
1 Mini-Maximiser2 $25.00 (DIY with Dick Smith parts)
1 Hitachi Frost Protection Valve $100.00
Total Cost without tank $ 1,986.45
if you must buy a hot water tank, add this
1 400 litre twin element tall cylindrical hot water storage tank. e.g. Rheem Optima $1,100

Sundry items to complete your plumbing will include two 19 mm hose barbs, two short lengths of 19mm radiator hose, four hose clips, various elbows, compression fittings, costing perhaps another $50. (The hose barbs, hose clips and radiator hose are necessary to adapt the EBP automotive pump to 13 mm copper pipe water circulation system). To comply with plumbing regulations you should get the work performed, or at the very least checked by a licenced plumber before connecting your system to the water mains. The EBP is rated to 135°C but at this stage Davies,Craig are unable to give a recommended operating pressure limit. The prototype installation has a 350 kPa pressure reduction valve on the cold inlet, a 500 kPa TPR valve at the top of the solar collector array (see diagram) and a 750 kPa TPR valve at the top of the storage tank. In practice this means that in the hottest part of the afternoon, when the tank water is expanding because it is being heated, there will be a pressure of up to 500 kPa in the circuit, at which point the TPR relief valve in the solar panel begins to open. So far the water pump has worked flawlessly at this pressure, at temperatures of up to 65°C

Test pump first.....

It is a good idea to connect your Mini-Maximiser2, solar photovoltaic panel and EBP, so that you can test the EBP in a bucket of water: it should commence pumping when, under a bright cloudy sky, the PV panel is delivering about 70 mA into a short-circuit (the shunt in your ammeter). This is the sort of radiant sky which will make a black car dashboard comfortably warm, and is therefore the same level of radiation at which your solar collectors will be able to start delivering usefully warm water into the hot water storage tank. To emphasise the amazing characteristics of the Mini-Maximiser, please note that with a conventional DC power source, the EBP pump will remain stalled until 1.5 amperes is flowing through it, but will start and run with only one-twentieth of that current from a 12 volt PV panel, if the Mini-Maximiser is present in the circuit.

Update May 2005: several years' experience with the EBP water pump leads us to remark that the impeller's bearings do gradually wear, eventually resulting in the main spinning magnetic yoke rubbing on the motor housing. The motor's serviceable life is not however over, and it can usually be kept operational in this condition for another 3 to 5 years by using a photovoltaic panel upgraded to 10-watts rated power. Attempts at repair by reboring the bearing, and inserting either a precision-machined PTFE ("Teflon") or phosphor bronze sleeve, have proved problematic. When the motor refuses to spin reliably with a 10-watt PV panel, it is thus recommended that the pump be replaced with a new unit. Even then the pump may be quite suitable for use in less critical applications.

Note well that the circulation pipes (red and blue lines in the diagram) contain NO non-return valve, and inevitably a small amount of warm water will flow back up into the solar panels each evening. In practice this has been demonstrated to be an insignificant loss. Indeed, if household occupants use some water in the late afternoon, there will be a layer of cold water at the bottom of the tank in any case.

Purging the air

When fully assembled and checked, your plumber must pressurise the tank and bleed all the air out of the highest points in both the storage tank and in the solar panels. No bleed valve is necessary, but at least one compression fitting must be accessible so that it can be loosened until air and water escape: WARNING - if it is a sunny day, escaping scalding water can burn your hands, so thick rubber gloves may be required. Failure to perform this operation will result in a non-functioning system, as the EBP will not provide a forceful enough flow to flush air down to the tank at ground level (not from a 5-watt PV panel, at any rate).

In sunny weather you will be able to tell that the system is working by feeling that the return pipe from the solar collector (red) feels considerably hotter than the other (blue) pipe. The pump makes a faint whining noise because the Mini-Maximiser feeds it with brief pulses of DC energy, and this sound usually indicates that the pump is spinning, but not necessarily.

Optimal Performance

If you buy a new car, you don't normally drive around with the handbrake applied. If you have a bright lamp, you don't hide it under a bushell. Similarly, now that you have invested all that hard-earned money in your new hot water system, it is a good idea to consider the best way to optimise its performance, and return on capital investment.

After twenty years' experience living with an electric-boosted solar hot water service, I suggest the following strategies:

Technical Assessment

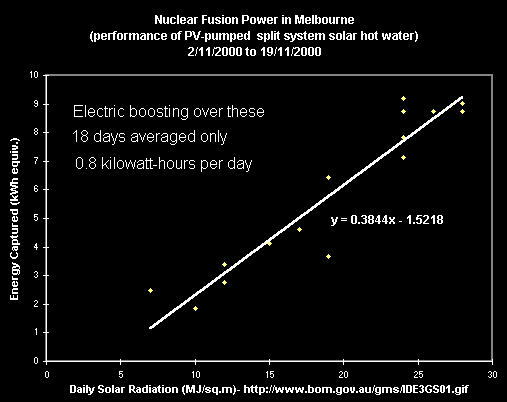

Detailed performance monitoring has been done for several weeks during October and November 2000. Temperature probes have been attached to the tank at six levels, and configured to provide a measure of average tank temperature. Readings have been logged every 5 minutes, and the temperature rise from approx 8 am to 5pm EAST determined. Knowing the specific heat of water, the temperature rise for 400 litres can be converted to a kilowatt-hour equivalent of heating input. A watthour meter has been monitoring electric boosting requirements, which are shown to be about 0.8 kWh per day during a fairly typical Melbourne November. Bureau of Meteorology satellite data have been collected from the BoM web site, and the solar radiation data for inner west Melbourne http://www.bom.gov.au/gms/IDE3GS01.gif, pixel (434,344) plotted against the heat input to the storage hot water tank:

Having had little experience using this assessment/benchmarking with other solar hot water systems, I am unsure how it rates against other types of pumped or thermosyphon system, but the small electric boosting requirements of 0.8 kWh per day suggest that it is operating very well overall. (December 2000 update: the boosting requirement 1 Nov to 13 Dec is only 15.6 kWh over these 42 days, being only a tiny 0.37 kilowatt-hours per day.)

Your Tactical Nuclear Weapon in the Battle to Save the Planet

A couple of hundred thousand Tasmanian householders and landlords could get funds direct from savings or a community bank loan and challenge the might of the Tasmanian Government and of NGIL, by confronting the Basslink proposal head-on with $500 million worth of solar water heating (clean efficient nuclear fusion power). Since Australia has launched itself so enthusiastically into microeconomic reform and competition policy, they can hardly whinge about a little bit of competition from "poxy old solar water heaters" can they??

Well, strangely enough, solar water heating is Tasmania's best-kept energy market secret weapon: consider this -

"200,000 Tasmanian households each with a 6 sq. metre solar water heater, all operating during a hot dry sunny Tasmanian drought will be able to avoid the use of LOTS of hydro water: it can be routinely expected that 80% of Tasmania's water heating requirements can be solar powered during such weather conditions. Present Tasmanian electricity usage for hot water: 10 kWh usage per day per household is 2 GWh per day, or 730 GWh/year. This is 2.8 times the theoretical production from your 30MW plant at Ord River: 83.4 m3/sec x 3600 x 24 x 365 x 2.8 is 7.36 billion cubic metres of water, or 7.36 million megalitres annually - about fifteen times Melbourne's annual water consumption - http://www.melbournewater.com.au/your_water/latest_reports/consumption.asp

"We could therefore expect about 50 to 60 per cent of that water usage to be avoided in a typical year, but crucially could routinely expect about 3.68 million megalitres of precious hydro water conservation during one drought summer in Tasmania. (6 months October - March inclusive) This is a case of near-perfect synergy and timing, in contrast to Basslink which has rather poor timing in being a generation too late in failing to realise that global warming is real, and that their project will not make money if they have to pay for the excess emissions to be generated as a direct consequence of Basslink, or if they are forbidden from allowing southward flows of coal power into Tasmania."

"Surely solar water heating systems throughout Tasmania must provide an order of magnitude more security of supply by using distributed (solar power) energy conversion compared to Basslink relying on a single expensive undersea cable, prone to accidental trawler damage, accidental anchor-dragging damage, or non-accidental events. Witness the broken Internet cable in the South China Sea.

"If the mean head of water pressure in Tasmania is perhaps three times the Ord River turbines, I would expect that the water volumes saved would work out to about one-third of the figures determined above."

K4 Picture Gallery

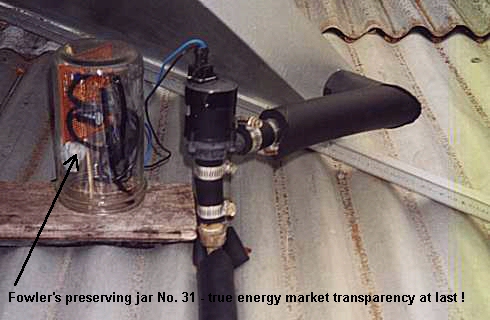

Fowler's Vacola Jar No.31 - energy market transparency at last!

Hiding under the heat-exchanger (solar collector) are
the waterproofed Mini-Maximiser and
the Davies,Craig brushless 12 V DC Electric Booster Pump

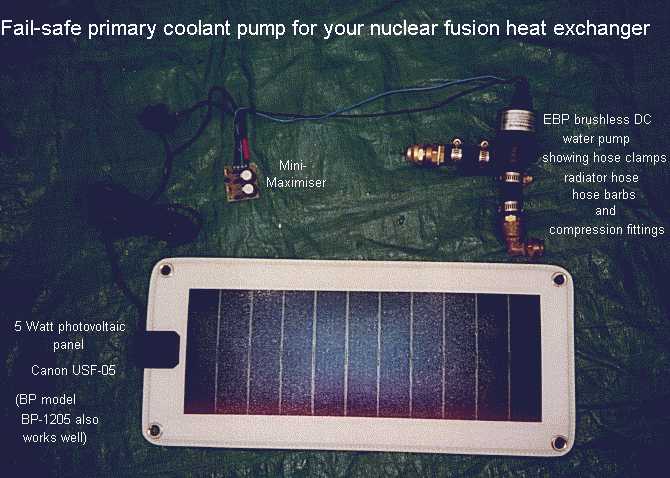

Fail-safe = pump operation is mandated by the energy flux from your reactor core

Fail-safe = pump operation is mandated
by the energy flux from your fusion reactor core.

This information is of a non-commercial nature, and I have no commercial interest in any solar technology industries or automotive accessories industry. The use and mention of commercial products is not an endorsement of any individual manufacturer or their product. If you can find equivalent products from other manufacturers, then please use them.
